A radiant barrier is a thin reflective foil that blocks the infrared heat radiating off a hot roof deck. In a sun-drenched climate like Texas, it addresses a heat path that ordinary insulation cannot.
The heat that insulation can't stop
Ordinary insulation slows heat that travels by conduction — heat moving through solid materials. But a large part of a Texas attic's heat arrives by radiation: the roof deck, baked by the sun, radiates infrared energy downward across the open attic space onto everything below, including the insulation and the ceiling. Insulation absorbs that radiant heat and eventually passes it along; it does not reflect it. This is the gap a radiant barrier fills.
How a radiant barrier works
A radiant barrier is a highly reflective material — typically a thin aluminum foil, often bonded to a backing — with a very low emissivity, meaning it radiates very little heat itself and reflects most of the infrared energy that strikes it. When it is installed facing the hot roof deck, it reflects the majority of that downward-radiating heat back toward the roof instead of letting it reach the attic floor and the rooms below.
There is one crucial requirement: a radiant barrier only works facing an air gap. Radiant heat travels across open space, so the reflective surface must have air on the side that faces the heat source. Pressed directly against another material, its reflective effect is lost. This is why radiant barriers are installed on the underside of the roof or on the rafters, facing down into the open attic — never buried inside insulation.
A radiant barrier is defined by low emissivity and a facing air gap. Reflect the roof's infrared heat before it reaches the attic, and everything below stays cooler.
Where radiant barriers go

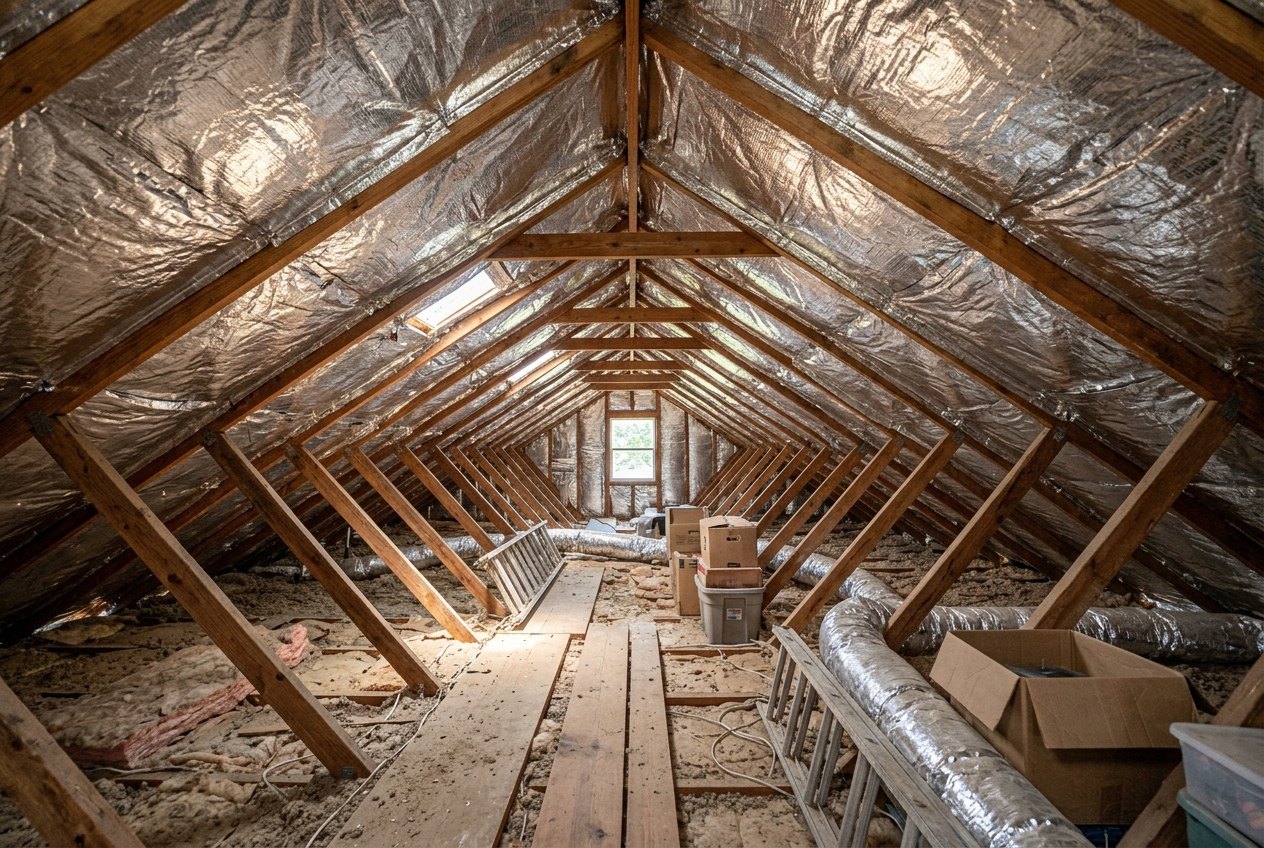

- Stapled to the underside of the roof rafters, facing down into the attic — a common retrofit for existing homes.

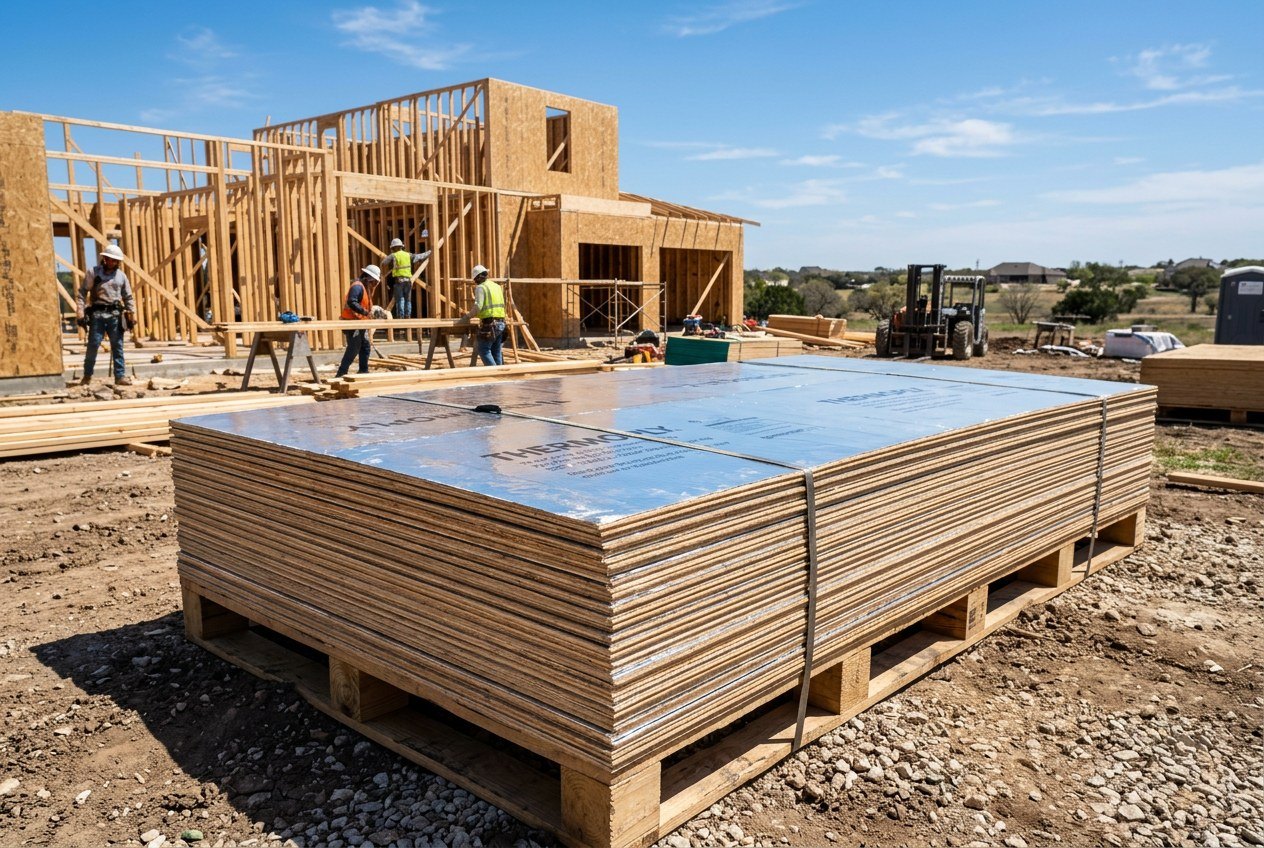

- As foil-faced roof sheathing in new construction, where the barrier is built into the roof deck from the start.

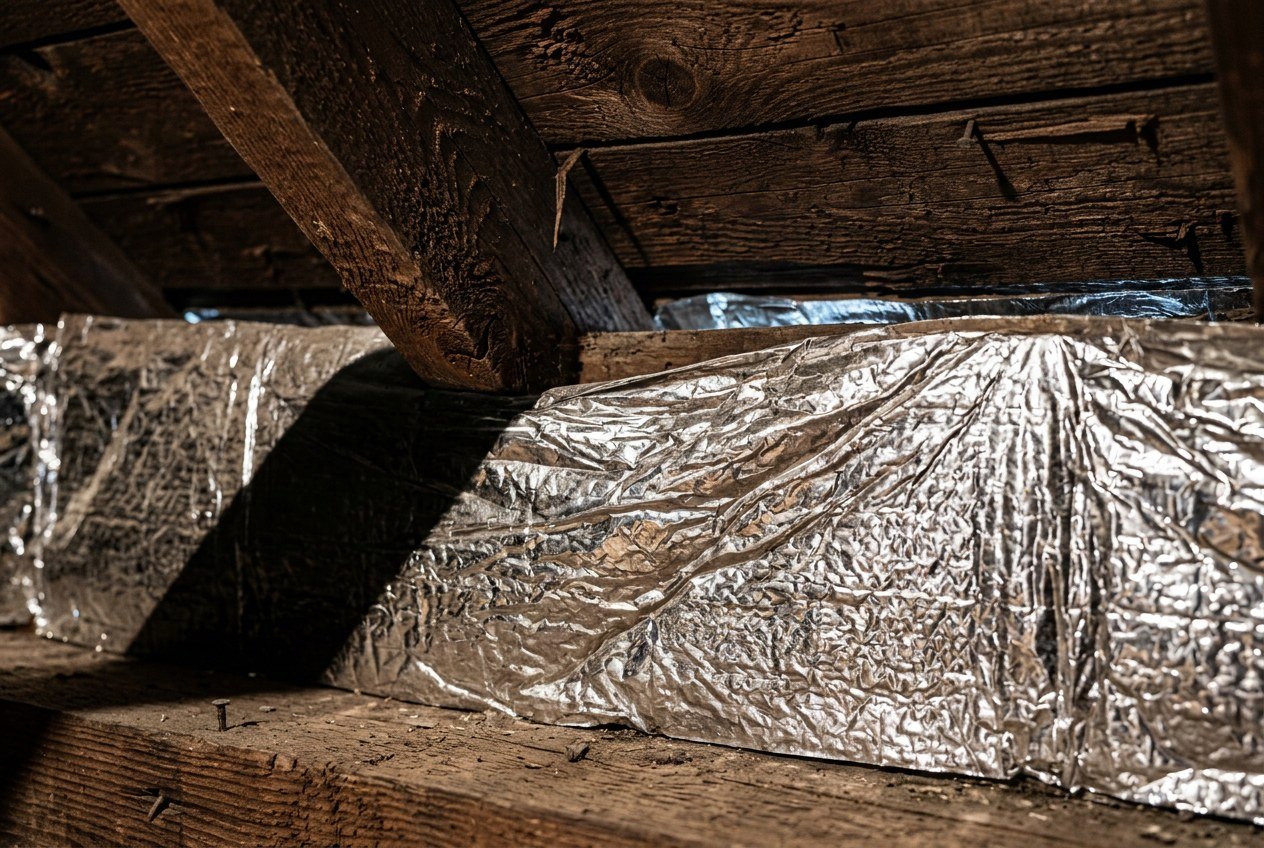

- Draped over attic-floor insulation in some approaches, though the reflective side must still face an air space to work.
In every case, the goal is the same: intercept the radiant heat coming off the hot roof before it warms the attic and the living space.
What a radiant barrier does and doesn't do
A radiant barrier is a powerful tool for the specific problem of radiant heat gain, and in a hot, sunny climate that problem is significant — which is why radiant barriers are far more valuable in Texas than in cold northern climates, where the winter concern is holding heat in rather than keeping the sun's radiant heat out. By reducing attic temperatures, a radiant barrier eases the load on the whole cooling system and, when ducts run through the attic, helps those ducts stay cooler too.
What a radiant barrier does not do is replace insulation. It addresses radiation, while insulation addresses conduction — two different heat paths. The two are complementary, not interchangeable. A radiant barrier reflects the sun's heat; insulation on the attic floor slows the remaining conducted heat. Used together, they cover more of the total heat load than either can alone, which is why the classic Texas approach pairs a radiant barrier with solid attic insulation.
One practical caution is dust. A radiant barrier works because of its low emissivity, and that property depends on the reflective surface staying relatively clean. Over many years, a horizontal foil laid across an attic floor can accumulate dust that gradually dulls its performance, which is one reason installing the barrier on the underside of the roof or the rafters — where it faces down and sheds dust rather than collecting it — tends to hold up better in a real attic. It's a small detail, but it's the kind of thing that separates a barrier that keeps working from one that quietly stops.
Fitting it into a whole-home strategy
A radiant barrier is one leg of the three-part approach that keeps a Texas home cool: reflect radiant heat, insulate against conduction, and seal against air leakage. Skip any one and the others have to work harder. For the conduction side, see the attic insulation page; for the air-sealing side, see the spray foam page; and to understand why the R-value number alone doesn't capture radiant gain, read the R-value in Texas page.
Blocking the sun before it ever heats the attic is one of the most climate-appropriate moves a Texas homeowner can make — and it flows straight through to the bottom line covered on the energy savings page.
